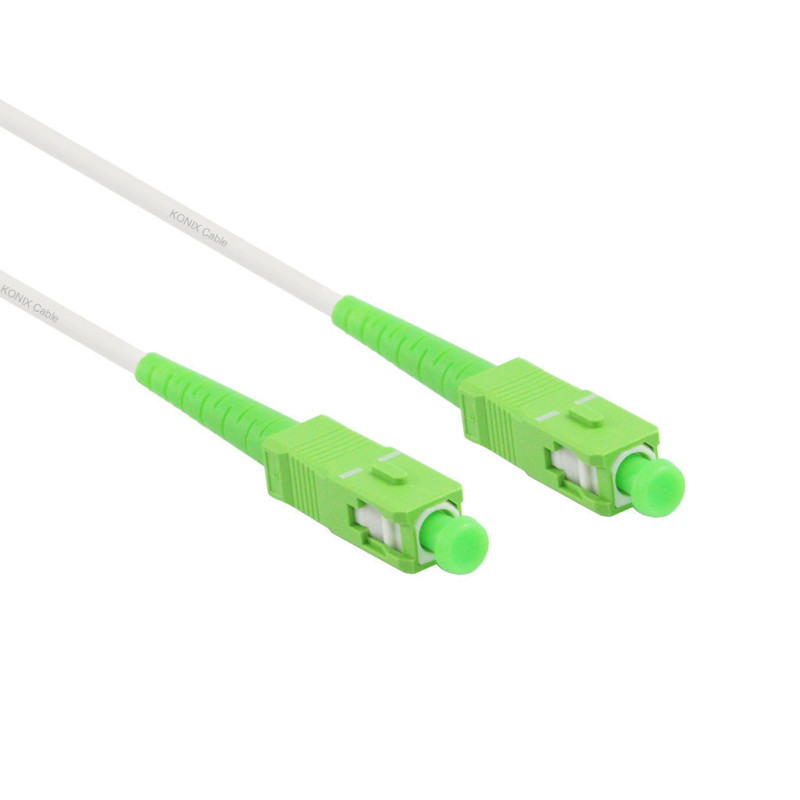

3M NBN Fibre Optic Cable SCA-SCA OS2 9/125 Singlemode Simplex

Introduction

This singlemode simplex fibre patch cable with SC-APC (SCA) male connectors on both ends, manufactured with OS2 9/125 µm singlemode optical fibre. Designed for indoor premises and NBN connections (ONT → router, patch panel → equipment, FTTP patching), this patch cord delivers low loss, high return-loss performance suitable for broadband, FTTP and other singlemode telecom/data applications. The cable is supplied with a White jacket (OS2 standard), LSZH jacket for safe indoor use, and factory-polished APC end-faces for excellent back-reflection performance.

Key features

• Length: 3.0 metres (fixed tolerance ±2%)
• Fibre type: OS2, singlemode 9/125 µm
• Connector type: SC-APC to SC-APC (commonly written SCA-SCA) — angled 8° APC polish
• Configuration: Simplex (one fibre)
• Jacket colour: White
• Jacket material: LSZH (Low Smoke Zero Halogen) — suitable for indoor/NBN installations
• Typical insertion loss: ≤0.10 dB (typical) — ≤0.30 dB (maximum, per mated pair)
• Return loss (APC): ≥60 dB (typical)
• 100% tested for insertion loss and end-face quality before shipping

Technical specifications

Optical

• Fibre core/cladding: 9/125 µm (singlemode)
• Fibre class: OS2 (ITU-T G.652.D compliant)
• Attenuation (fibre): ≤0.40 dB/km @ 1310 nm; ≤0.30 dB/km @ 1550 nm (fibre nominal)
• Connector insertion loss: Typical ≤0.10 dB; Guaranteed ≤0.30 dB (per mated pair)
• Connector return loss: APC ≥60 dB (typical)
• Polish type: APC (angled physical contact, 8°)

Mechanical & environmental

• Cable type: Simplex, 3mm
• Jacket material: LSZH
• Minimum bend radius: ≥30 mm (static); ≥60 mm (dynamic/repeat bending)
• Tensile strength (short term): typically ≥20 N (manufacturer dependent)
• Operating temperature: −20 °C to +70 °C (typical)
• Storage temperature: −40 °C to +85 °C
• Durability: Connector durability typically ≥500 matings
